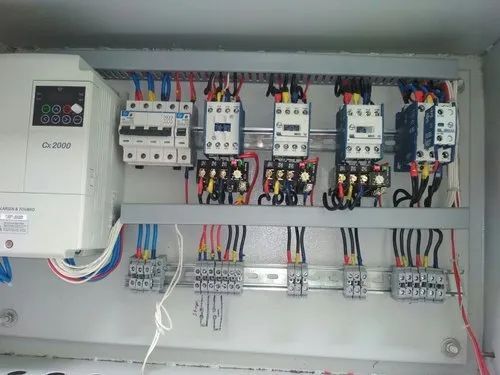

Electrical Drive Panel

Name: Electrical Drive Panel
Brand: SHAKTI INDUSTRIES
Price: 40000 INR
Availability: InStock

40000 INR/Piece

Get a Price/Quote

Product Details:

Rated Current Up to 630A
Cooling System Natural Air / Forced Air (Fan)
Thickness 1.6 mm
Panel Type VFD / MCC / PCC
Rated Insulation Voltage 690V
Connectivity Type Wired, Fieldbus Options Available
Components MCB, MCCB, Contactor, Overload Relay, VFD, Terminal Blocks
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Electrical Drive Panel Price And Quantity

Price 40000 INR/Piece
Minimum Order Quantity 1 , , Piece

Electrical Drive Panel Product Specifications

Features Short circuit and overload protection, fully wired, tested, modular construction
Rated Operation Voltage 415V
Standard IEC 61439, IS 8623
Base Material Mild Steel
Cabinet Material Mild Steel
Cover Material Mild Steel with powder coating
Surface Color Grey
Rated Voltage 415V AC
Current Rating 400A - 630A
Display Type Digital / LED Indication
IP Rating Ip54
Product Type Electrical Drive Panel
Protection Class Class I
Dimension (L*W*H) 1000 mm x 600 mm x 2200 mm
Control System PLC based or Manual
Protection Level IP54
Way Three Phase
Panel Type VFD / MCC / PCC
Rated Insulation Voltage 690V
Connectivity Type Wired, Fieldbus Options Available
Components MCB, MCCB, Contactor, Overload Relay, VFD, Terminal Blocks
Frequency (MHz) 50 Hz
Operating Voltage 380-415V AC
Rated Current Up to 630A
Application Industrial Automation, Pump Control, Conveyor Systems
Maximum Output Current 630A
Surface Finish Powder Coated
Material Mild Steel (MS)
Cooling System Natural Air / Forced Air (Fan)
Thickness 1.6 mm

Starter Type DOL/Star Delta/Soft Starter (as per requirement)
Connection Type Bolt/Clamp Type
Busbar Material Electrolytic Copper
Panel Weight Approx. 120-160 kg (depends on configuration)
Cable Entry Bottom/Top
Degree of Protection IP54 as per IEC60529
Power Supply 3 Phase, 4 Wire
Paint Shade RAL 7035
Operation Mode Manual/Automatic selectable
Mounting Type Floor Mounted
Earthing Arrangement Provided as per IS standards
Panel Door Lockable, hinged front door
Ambient Temperature Range -10C to +45C
Internal Wiring FRLS copper cable

Electrical Drive Panel Trade Information

Supply Ability 50 , , Piece Per Week
Delivery Time 5 Days
Main Domestic Market All India

Product Description

We are the manufacturers of Pvc Extruders, Screw Barrel, Capstan Machine, Caterpillar Machine, Bunching Machine, Portal Line Take Up, Automatic Coiling Machine, Armouring Core Laying, Pvc Compound Extruder, Wire Machinery, Cable Caterpillar Machine, Electrical, Armoured Core Laying Machine, Automatic Wire Stripping Machine, Automatic Wire Stranding Machine, Wire Bunching Machine, Portal Line Take Up Machine, Pneumatic Wire Stripping Machine, Single Layer Stripping Machine, Co Extruder Machine etc.

Engineered for Robust Industrial Applications

Built to comply with IEC 61439 and IS 8623 standards, our Electrical Drive Panel is intended for use in demanding industrial automation, pump control, and conveyor systems. The mild steel enclosure, paired with an IP54 rating, safeguards sensitive components from dust and moisture. Whether installed in manufacturing plants or process facilities, this panel delivers reliable and efficient control for your electrical infrastructure.

Flexible Installation and Operation

With floor-mounted construction and options for bottom or top cable entry, installation is straightforward and adaptable to varied site layouts. Its selectable manual or automatic operation (including PLC-based control) and compatibility with DOL, Star Delta, or Soft Starter configurations enable customization to match process requirements, supporting both new installations and retrofits.

Safety and Compliance at the Core

Safety is paramount, with a lockable, hinged front door and full compliance with protection class I. Electrolytic copper busbars, FRLS internal cabling, and earthing arrangements according to IS standards ensure electrical integrity. The panel includes modern protective devices like MCBs, MCCBs, and overload relays, all thoroughly factory tested for operational assurance.

FAQ's of Electrical Drive Panel:

Q: How is the Electrical Drive Panel installed and where can it be used?

A: The panel is designed for floor mounting and supports both bottom and top cable entry to facilitate easy installation in industrial environments such as manufacturing plants, pump stations, and conveyor systems. Its robust mild steel construction and IP54 degree of protection make it suitable for locations exposed to dust and moderate moisture.

Q: What are the key features and benefits of using electrolytic copper busbars in the panel?

A: Electrolytic copper busbars offer superior electrical conductivity and lower resistance, ensuring efficient distribution of power while minimizing losses and heating. This enhances reliability and longevity, especially in high-current applications ranging from 400A to 630A.

Q: When should I choose between manual and automatic operation modes?

A: Manual operation is ideal for straightforward controls or maintenance scenarios where direct human intervention is required. Automatic operation, often managed by a PLC, is preferred for processes needing precision, sequencing, or remote monitoring, such as in automated production lines or integrated pump systems.

Q: What protection mechanisms are included in the panel?

A: The panel features short circuit and overload protection through MCBs, MCCBs, and overload relays. It is fully tested and equipped with FRLS copper cabling, secure earthing arrangements, and a lockable, hinged front door for operational and personnel safety, in compliance with IEC 61439 and IS 8623 standards.

Q: How does the cooling system work in this drive panel?

A: The panel utilizes either natural air cooling or forced air (fan-assisted) cooling depending on load and configuration. Properly designed airflow helps prevent overheating, ensuring optimal performance and longevity of internal components.

Q: What types of starters and control systems can be integrated?

A: This drive panel supports DOL, Star Delta, or Soft Starters as per application requirements, and can be configured with either PLC-based or manual control systems. This flexibility makes it suitable for diverse industrial automation needs with possibilities for digital and LED indication.

Q: What are the advantages of the modular and fully-wired construction?

A: Modular construction allows for easy expansion, maintenance, and component replacement, reducing downtime. Being fully wired and factory tested ensures that every panel meets quality standards and is ready for immediate integration into your electrical infrastructure upon delivery.
